Zoho SalesIQ Mobilisten Flutter Plugin

For Gradle version 6.7 and below

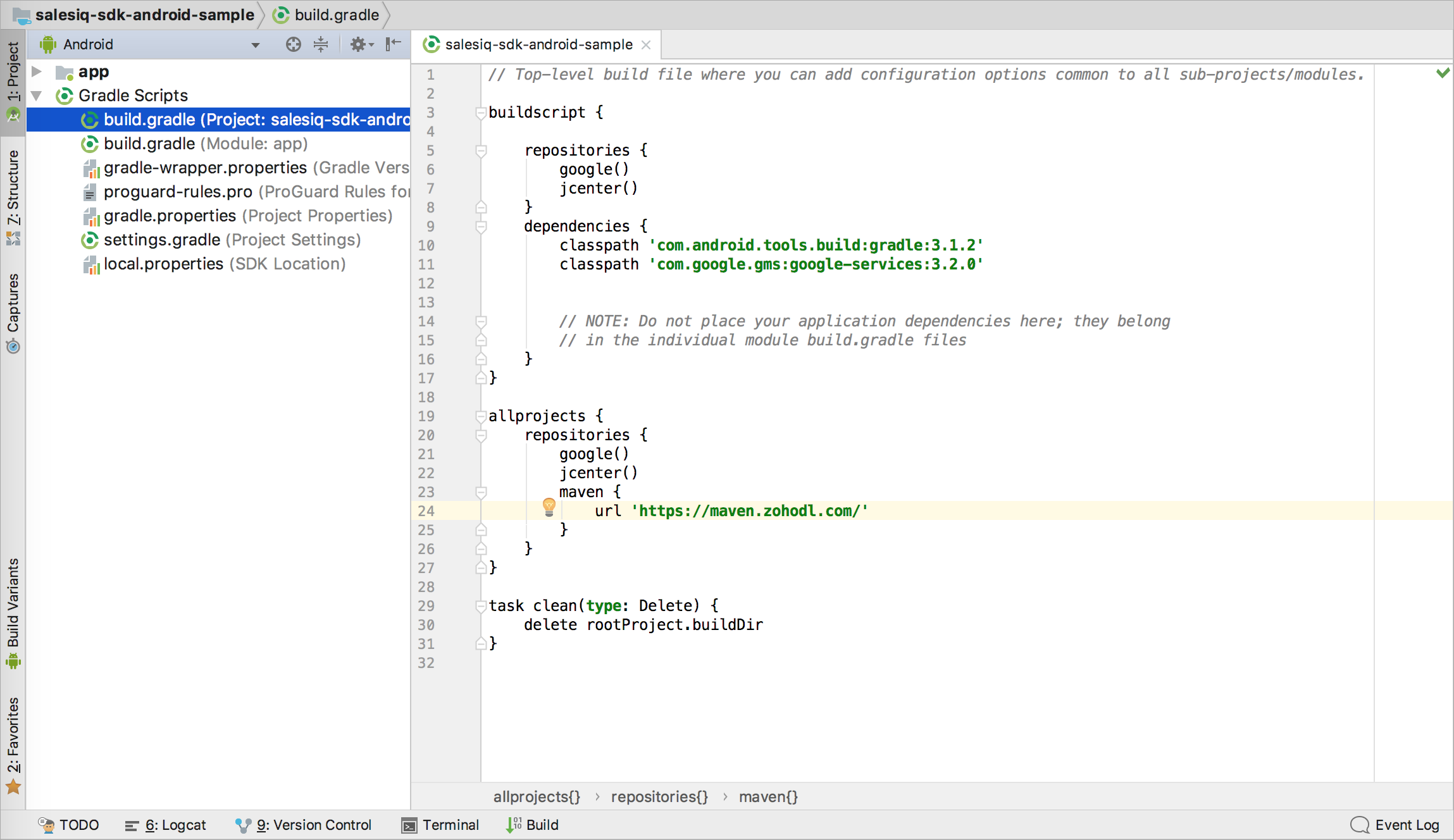

Copied// Add the following to your project's root build.gradle file.

allprojects {
   repositories {
      google()
      mavenCentral()
      // ...
      maven { url 'https://maven.zohodl.com' }
   }
}

For Gradle version 6.8 and above

Copied// Add the following to your settings.gradle file.

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
        // Add the Zoho Maven URL here
        maven { url = uri("https://maven.zohodl.com") }
    }
}

Copied// Add the following to your settings.gradle file.

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
        // Add the Zoho Maven URL here
        maven { url 'https://maven.zohodl.com' }
    }
}

Now, click on Sync Now or use the Sync Project with Gradle Files option under the File menu.

6. To initialize Mobilisten, generate the App and Access keys for iOS. In the Zoho SalesIQ console, navigate to Settings → Brands → Installation → iOS. Enter the bundle ID for the application, as shown in the example below, and click on Generate.

Note: The App and Access keys generated for iOS are to be used in further steps.

7. Generate the App and Access keys for Android to initialize Mobilisten. In the Zoho SalesIQ console, navigate to Settings → Brands → Installation → Android. Enter the application ID for the application as shown in the below example and Click on Generate.

8. Setup the Lifecycle Callback: Add the android:name property to the <application> tag in your AndroidManifest.xml:

Copied

<application
    android:label="@string/app_name"
    android:icon="@drawable/ic_launcher"
    android:name="<package_name>.MyFlutterApplication">

Copiedimport io.flutter.app.FlutterApplication;
import com.zoho.salesiq.mobilisten.calls.plugin.MobilistenCallsPlugin;
import com.zohosalesiq.plugin.MobilistenPlugin;

public class MyFlutterApplication extends FlutterApplication {

        //...

       @Override
        public void onCreate() {
                MobilistenPlugin.registerCallbacks(this);
                MobilistenCallsPlugin.registerCallbacks(this);
                super.onCreate();
        }
}

This is essential as it enables Mobilisten to track activity's lifecycles and other listener callbacks on the app's startup to show the launcher and other important user behaviors.

Note: If you already have a custom Application class, ensure to "import com.zohosalesiq.plugin.MobilistenPlugin;" and call "MobilistenPlugin.registerCallbacks(this);" before invoking "super.onCreate()".

9. Open the main.dart file inside the lib directory and import Mobilisten as shown below. With this, additionally import dart:io to check the current platform which will be used at a later stage.

Copied

import 'dart:io' as io;
import 'package:salesiq_mobilisten/salesiq_mobilisten.dart';

10. Initialize Mobilisten using the init API within the initState() method in the main.dart file.

Copiedif (io.Platform.isIOS || io.Platform.isAndroid) {
  String appKey;
  String accessKey;

  if (io.Platform.isIOS) {
    appKey = "INSERT_IOS_APP_KEY";
    accessKey = "INSERT_IOS_ACCESS_KEY";
  } else {
    appKey = "INSERT_ANDROID_APP_KEY";
    accessKey = "INSERT_ANDROID_ACCESS_KEY";
  }

  ZohoSalesIQ.eventChannel.listen((event) {
    switch (event["eventName"]) {
      case SIQEvent.visitorRegistrationFailure:
        {
          // event("code") - Gives the error code
          // event("message") - Gives the error message
          if (isLoggedInUser) {
            ZohoSalesIQ.sendEvent(
              SIQSendEvent.visitorRegistrationFailure,
              [SalesIQUser(userId: "test")],
            );
          } else {
            ZohoSalesIQ.sendEvent(
              SIQSendEvent.visitorRegistrationFailure,
              [SalesIQGuestUser()],
            );
          }
          break;
        }
    }
  });

SalesIQConfiguration configuration = SalesIQConfiguration(
    appKey: appKey,
    accessKey: accessKey);

ZohoSalesIQ.initialize(configuration).then((_) {
  // initialization successful
  ZohoSalesIQ.launcher.show(VisibilityMode.always);
}).catchError((error) {
  // initialization failed
  print(error);
});

11. Permissions

Mobilisten requires a set of permissions for chat, bot triggers, and call features to function properly.

Base permissions:

• android.permission.INTERNET: Required for network-related operations (mandatory)
• android.permission.SCHEDULE_EXACT_ALARM: If you want your chatbot to be proactively triggered for your mobile app users after a specified duration (more than a second), add SCHEDULE_EXACT_ALARM permission in your AndroidManifest.xml. This ensures scheduling the bot trigger after the designated time. Even if your app is inactive, SalesIQ will post the trigger message as a notification for your app users.

Note: To use the bot triggers in Android 12 & above, the SCHEDULE_EXACT_ALARM permission is mandatory.

Call permissions:

• android.permission.POST_NOTIFICATIONS
• android.permission.FOREGROUND_SERVICE_SPECIAL_USE
• android.permission.FOREGROUND_SERVICE_PHONE_CALL
• android.permission.FOREGROUND_SERVICE_MICROPHONE
• android.permission.MANAGE_OWN_CALLS
• android.hardware.sensor.proximity
• android.permission.BLUETOOTH_CONNECT
• android.permission.USE_FULL_SCREEN_INTENT
• android.permission.MODIFY_AUDIO_SETTINGS
• android.permission.SYSTEM_ALERT_WINDOW
• android.permission.RECORD_AUDIO
• android.permission.VIBRATE

Step 11: Backup Codes

If your app has enabled backup and you have your own backup rules or some of your other dependencies have them, then all these steps below are mandatory for App data backup to Google. Since Android doesn’t support manifest merging, all backup rules must be combined into a single file, which you’ll need to reference in your app’s AndroidManifest.xml.

To complete this setup,

1. Create XML files called merged_backup_rules.xml and merged_data_extraction_rules.xml in the res/xml/ directory. Example: android/app/src/main/res/xml.
2. Add your rules with our Mobilisten rules to your app and verify that everything is functioning as expected.

merged_data_extraction_rules.xml

Copied<?xml version="1.0" encoding="utf-8"?>
<data-extraction-rules>

    <cloud-backup>
        <!-- Your own/other library's rules -->
        <exclude domain="sharedpref" path="sample-data"/>
        <exclude domain="database" path="sample.db"/>

        <!-- Mobilisten rules -->
        <exclude
            domain="sharedpref"
            path="siq_encrypted_shared_preference_entries.xml" />
        <exclude
            domain="sharedpref"
            path="siq_session.xml" />
        <exclude
            domain="sharedpref"
            path="siq_permission.xml" />
        <exclude
            domain="database"
            path="siq_mobilisten.db" />
        <exclude
            domain="database"
            path="mobilisten_zoho_salesiq.db" />
    </cloud-backup>

    <device-transfer>
        <!-- Your own/other library's rules -->
        <exclude domain="sharedpref" path="sample-data"/>
        <exclude domain="database" path="sample.db"/>
    </device-transfer>
</data-extraction-rules>

Also, ensure to map it in your AndroidManifest.xml.

Copied

android:dataExtractionRules="@xml/merged_data_extraction_rules"
android:fullBackupContent="@xml/merged_backup_rules"'
tools:replace="android:fullBackupContent,android:dataExtractionRules,android:allowBackup"

12. Proguard Configuration (Minifying App)

In some versions of the Android Gradle plugin, the R8 compiler exhibits aggressive behavior that removes some essential classes necessary for the SDK to function as expected. To handle this, we have added specific pro-guard rules within our Mobilisten SDK to preserve these crucial classes during the build process. If you have enabled ProGuard(minifyEnabled) R8, then please add the following rules in your proguard-rules.pro file in your project/android folder.

Copied

-dontwarn kotlinx.parcelize.Parcelize

If you encounter any instances where these pro-guard rules do not suffice, kindly reach out to us at (support@zohosalesiq.com).
