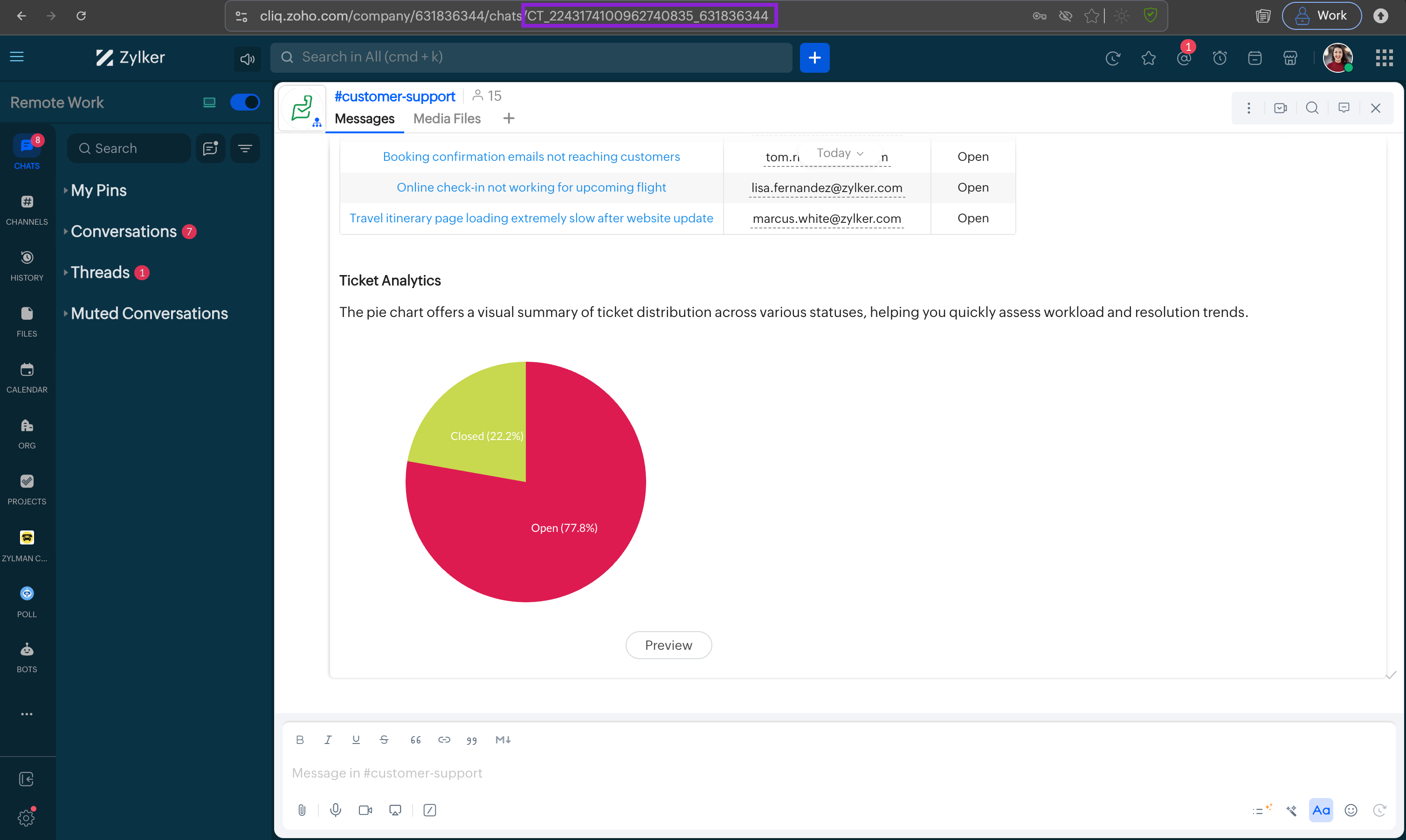

• In the Cliq app, open the chat or channel. The CHAT_ID is the numeric value in the browser URL, for example, in https://cliq.zoho.com/app/chats/CT_1847392056173920481_748291635, the CHAT_ID is CT_1847392056173920481_748291635.

• For direct and group chats, use the Retrieve all direct chats (GET /api/v3/chats) and look for the chat_id field.
• For channel chat streams, use the List Channels API (GET /api/v3/channels) and look for the chat_id field (distinct from the channel's id field).

{
    "chats": [
        {
            "chat_id": "2890538000000012345",
            "name": "Alice Johnson",
            "chat_type": "direct_message",
            "participant_count": 2,
            "created_time": "2024-06-01T09:00:00.000Z",
            "last_modified_time": "2025-04-10T14:30:00.000Z",
            "pinned": false,
            "removed": false,
            "creator": {
                "id": "70027934",
                "name": "Tim Harrison"
            },
            "last_message_info": {
                "message_id": "1773813859592_51531973059",
                "sender": "70027934",
                "time": "2025-04-10T14:30:00.000Z",
                "content": {
                    "text": "See you at the standup!"
                },
                "type": "text"
            }
        },
        {
            "chat_id": "2890538000000067890",
            "name": "Bob Carter",
            "chat_type": "direct_message",
            "participant_count": 2,
            "created_time": "2024-09-15T11:00:00.000Z",
            "last_modified_time": "2025-04-09T09:45:00.000Z",
            "pinned": true,
            "removed": false,
            "creator": {
                "id": "70027934",
                "name": "Tim Harrison"
            }
        }
    ]
}

• Inside the Cliq app, hover over any message and right-click to see the Copy message link option. Alternatively, click the timestamp displayed to the left of a message to retrieve its permalink. In both cases, the MESSAGE_ID is the numeric value embedded in the copied link.

• Use the Get Messages API (GET /api/v2/chats/{CHAT_ID}/messages) and look for the id field per message. Use fromtime and totime (epoch milliseconds) to narrow results to a time range.

{
    "data": [
        {
            "sender": {
                "name": "John Doe",
                "id": "55743307"
            },
            "id": "1542711601585_349430767610289",
            "time": 1542798001273,
            "type": "file",
            "content": {
                "thumbnail": {
                    "height": 230,
                    "width": 400,
                    "blur_data": "/9j/4AAQSkZJRgABAgAAAQABAAD/2wBD..."
                },
                "file": {
                    "name": "Feature-overview.jpg",
                    "type": "file",
                    "dimensions": {
                        "height": 3510,
                        "width": 2552,
                        "size": 559008
                    },
                    "id": "f3791c2279a67f6e5cbc8e1beb41ded85da2bdc672e2496ba9af50c0c24c8e2e453862a8a28becb86f859ab142d44633b05a8fb2ff34955c9e9824527c15cd03"
                },
                "comment": "Hey Emily! Hope you understand the above design"
            }
        },
        {
            "sender": {
                "name": "John Doe",
                "id": "55743307"
            },
            "id": "1542711601585_349430767610289",
            "time": 1542798001273,
            "type": "file",
            "content": {
                "thumbnail": {
                    "height": 230,
                    "width": 400,
                    "blur_data": "/9j/4AAQSkZJRgABAgAAAQABAAD/2wBD..."
                },
                "file": {
                    "name": "Feature-overview.jpg",
                    "type": "file",
                    "dimensions": {
                        "height": 3510,
                        "width": 2552,
                        "size": 559008
                    },
                    "id": "f3791c2279a67f6e5cbc8e1beb41ded85da2bdc672e2496ba9af50c0c24c8e2e453862a8a28becb86f859ab142d44633b05a8fb2ff34955c9e9824527c15cd03"
                },
                "comment": "Hey Emily! Hope you understand the above design"
            }
        }
    ]
}

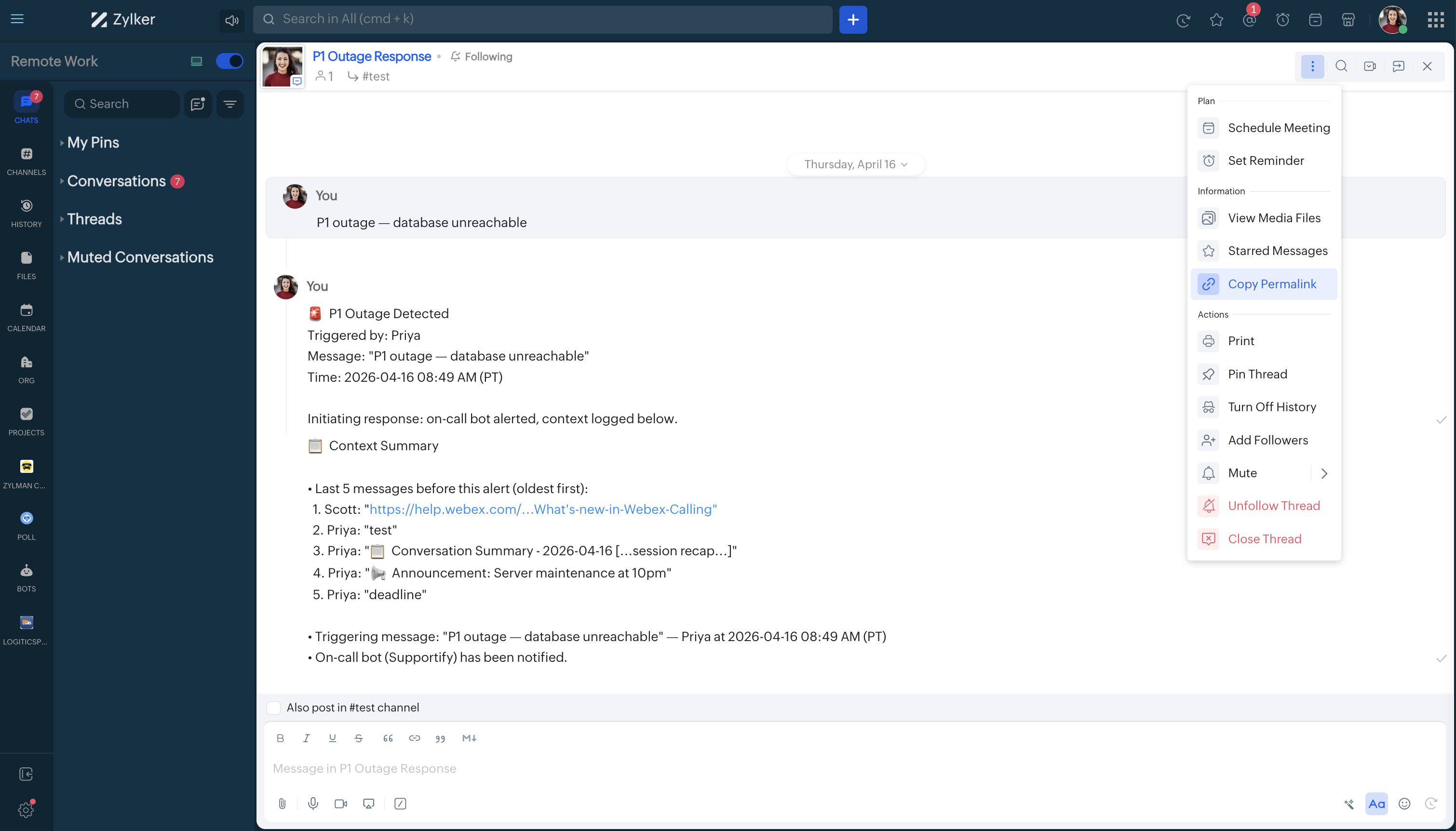

• In the Cliq app, open a channel and click into a thread. The browser URL updates to show the thread's CHAT_ID.

• Use the List Threads API (GET /api/v2/chats/{parent_chat_id}/threads) and look for the chat_id field per thread.

{
  "type": "chat_thread",
  "data": [
    {
      "chat_id": "CT_9001245010012354810_3467821-T-9001245010938461210",
      "parent_chat_id": "CT_9001245010012354810_3467821",
      "follower_count": 5,
      "is_follower": true
    }
  ]
}

• SCHEDULED_MESSAGE_ID is not displayed in the Zoho Cliq UI.

• Use the List Scheduled Messages API (GET /api/v2/chats/{CHAT_ID}/scheduledmessages) and look for the id field per scheduled message.

{
    "url": "/v2/chats/2684315214835428158/scheduledmessages",
    "next_token": "es_cXsdfasdeiwlal",
    "type": "scheduledmessages",
    "data": [
        {
            "chat_id": "CT_2684315214835428158_697322516",
            "creator": "697322516",
            "created_time": 1740456316369,
            "scheduled_time": 1740556970477,
            "id": 4000000131002
        }
    ]
}

• FILE_ID is not retrievable via the Zoho Cliq UI.

• Use the Get Messages API (GET /api/v2/chats/{CHAT_ID}/messages) and look for the id field inside the content.file object of messages with "type": "file".

{
  "data": [
    {
      "sender": {
        "name": "Scott",
        "id": "12345678"
      },
      "id": "1543384891842_351840917549285",
      "time": 1543384891842,
      "type": "file",
      "content": {
        "thumbnail": {
          "height": "230",
          "width": "400",
          "blur_data": "/9j/4AAQSkZJRgABAgAAAQABAiZ2hnPk1xeXBkeFxlZ2P/..."
        },
        "file": {
          "name": "Feature-overview.jpg",
          "type": "image/jpeg",
          "dimensions": {
            "height": 3510,
            "size": 559008,
            "width": 2552
          },
          "id": "f3791c2279a67f6e5ca8ab2ff34955c9e9824527c15cd03"
        },
        "comment": ""
      }
    }
  ]
}

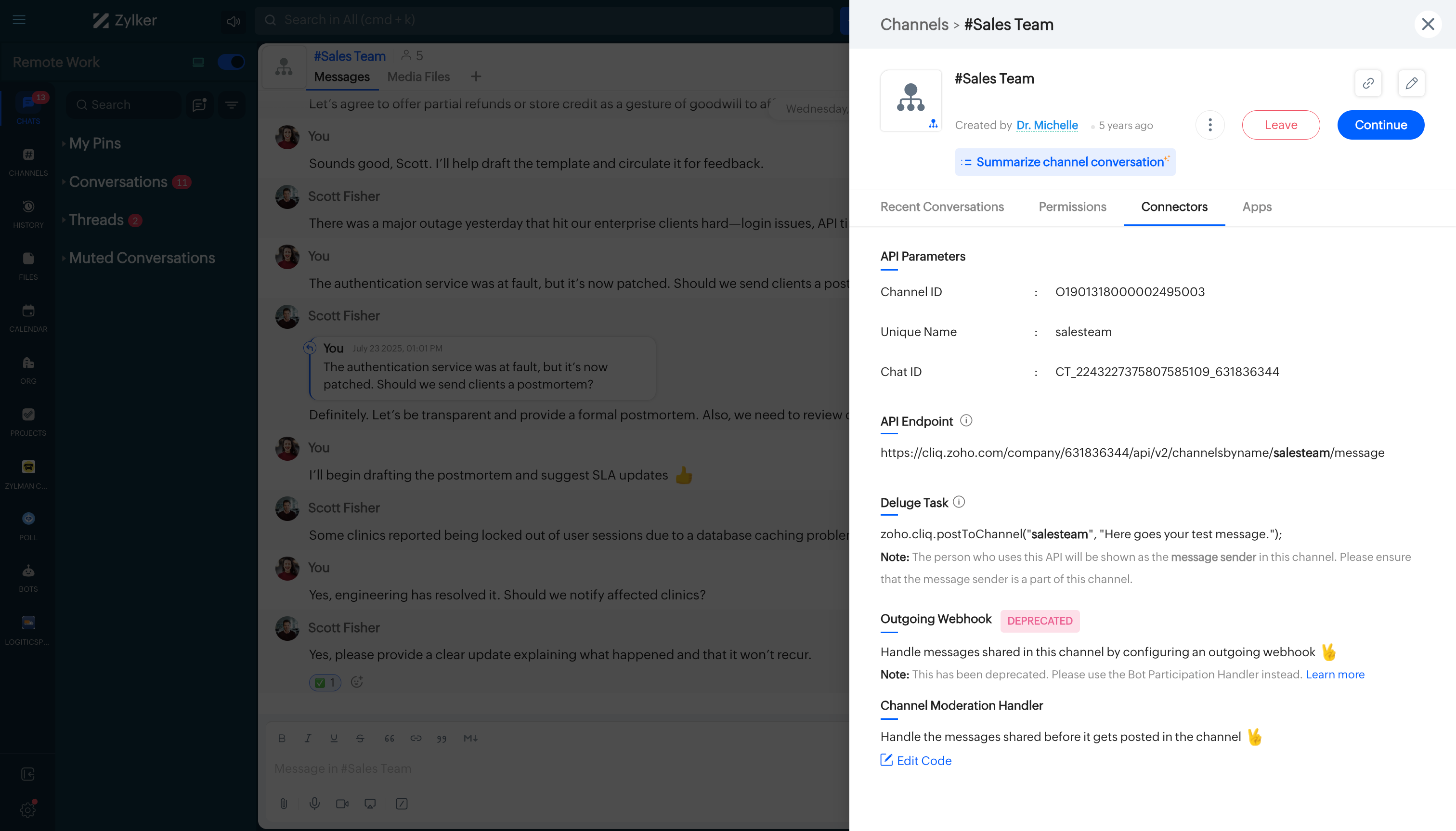

• Navigate to the top right corner of your preferred channel and click on the three dots.
• In the menu that appears, select "Channel info." A pop-up will display detailed information about the channel.
• Hover over the "Connectors" section and click on it.
• Under "API Parameters," you will find the CHANNEL ID.

• Use the List Channels API (GET /api/v2/channels) and look for the id field. Use the name query parameter to filter by channel name.

{
 "channels": [
    {
      "pinned": false,
      "level": "organization",
      "chat_id": "CT_2230642524712404875_64396981",
      "joined": true,
      "creator_name": "Scott",
      "unique_name": "marketing",
      "total_message_count": "1349",
      "organization_id": "87610291",
      "admin_permission": {
		"add_participant": true,
		"archive_channel": true,
		"audio_conference": true,
		"clear_all_messages": true,
		"delete_channel": true,
		"delete_my_msg": true,
		"delete_others_message": true,
		"edit_channel_info": true,
		"edit_my_msg": true,
		"leave_channel": true,
		"mention_users": true,
		"post_reply": true,
		"prime_time": true,
		"remove_participant": true,
		"send_message": true,
		"special_mentions": true,
		"sticky_message": true,
		"unarchive_channel": true,
		"video_conference": true
      },
      "muted_interval": "292278994-08-16T23:12:55-08:00",
      "channel_id": "O1775998000013036075",
      "creator_id": "948218",
      "invite_only": false,
      "unread_time": "2019-11-29T05:15:35-08:00",
      "moderator_permission": {
		"add_participant": true,
		"archive_channel": false,
		"audio_conference": true,
		"clear_all_messages": false,
		"delete_channel": false,
		"delete_my_msg": true,
		"delete_others_message": false,
		"edit_channel_info": true,
		"edit_my_msg": true,
		"leave_channel": true,
		"mention_users": true,
		"post_reply": true,
		"prime_time": true,
		"remove_participant": true,
		"send_message": true,
		"special_mentions": false,
		"sticky_message": true,
		"unarchive_channel": false,
		"video_conference": true
      },
      "unread_message_count": 19,
      "last_message_info": {
        "sender_id": "666730117",
        "message_type": "text",
        "time": "2020-01-07T23:10:26-08:00",
        "text": "Team, please check for the marketing updates for 2019 ASAP.",
        "sender_name": "Olivia Palmer"
      },
      "last_modified_time": "2020-01-07T23:10:26-08:00",
      "status": "created",
      "description": "Marketing Updates",
      "member_permission": {
 		"add_participant": true,
		"archive_channel": false,
		"audio_conference": true,
		"clear_all_messages": false,
		"delete_channel": false,
		"delete_my_msg": true,
		"delete_others_message": false,
		"edit_channel_info": false,
		"edit_my_msg": true,
		"leave_channel": true,
		"mention_users": true,
		"post_reply": true,
		"prime_time": false,
		"remove_participant": false,
		"send_message": true,
		"special_mentions": false,
		"sticky_message": false,
		"unarchive_channel": false,
		"video_conference": true
      },
      "creation_time": "2017-04-11T02:10:51-07:00",
      "participant_count": 51,
      "current_user_role": "member",
      "teams": {},
      "name": "#Marketing"
    }
	...
	...
	...
  ],
  "has_more": true,
  "next_token": "2fd152c0c1b5ee5b2a1d5fd1d3b233421cd1b8f67b2038cac5c27264b7ee1c616221ab489ea0bc2d7c43fa7a14f9c851cb11f4693804e0b43019786cc6580824",
  "sync_token": "2fd152c0c1b5ee5b2a1d5fd1d3b233422031afe47d55506a59fb92d55ea3a5ca9298862a157ff52c12ce6fb8be2c59b88d86d22368d8b17a1c484589b6c50225"

}

• Navigate to the top right corner of your preferred channel and click on the three dots.
• In the menu that appears, select "Channel info." A pop-up will display detailed information about the channel.
• Hover over the "Connectors" section and click on it.
• Under "API Parameters," you will find the Channel Unique Name.

• Use the List Channels API (GET /api/v2/channels) and look for the unique_name field in the response.

{
  "channels": [
    {
      "pinned": false,
      "level": "organization",
      "chat_id": "CT_2230642524712404875_64396981",
      "joined": true,
      "creator_name": "Scott",
      "unique_name": "marketing",
      "total_message_count": "1349",
      "organization_id": "87610291",
      "admin_permission": {
		"add_participant": true,
		"archive_channel": true,
		"audio_conference": true,
		"clear_all_messages": true,
		"delete_channel": true,
		"delete_my_msg": true,
		"delete_others_message": true,
		"edit_channel_info": true,
		"edit_my_msg": true,
		"leave_channel": true,
		"mention_users": true,
		"post_reply": true,
		"prime_time": true,
		"remove_participant": true,
		"send_message": true,
		"special_mentions": true,
		"sticky_message": true,
		"unarchive_channel": true,
		"video_conference": true
      },
      "muted_interval": "292278994-08-16T23:12:55-08:00",
      "channel_id": "O1775998000013036075",
      "creator_id": "948218",
      "invite_only": false,
      "unread_time": "2019-11-29T05:15:35-08:00",
      "moderator_permission": {
		"add_participant": true,
		"archive_channel": false,
		"audio_conference": true,
		"clear_all_messages": false,
		"delete_channel": false,
		"delete_my_msg": true,
		"delete_others_message": false,
		"edit_channel_info": true,
		"edit_my_msg": true,
		"leave_channel": true,
		"mention_users": true,
		"post_reply": true,
		"prime_time": true,
		"remove_participant": true,
		"send_message": true,
		"special_mentions": false,
		"sticky_message": true,
		"unarchive_channel": false,
		"video_conference": true
      },
      "unread_message_count": 19,
      "last_message_info": {
        "sender_id": "666730117",
        "message_type": "text",
        "time": "2020-01-07T23:10:26-08:00",
        "text": "Team, please check for the marketing updates for 2019 ASAP.",
        "sender_name": "Olivia Palmer"
      },
      "last_modified_time": "2020-01-07T23:10:26-08:00",
      "status": "created",
      "description": "Marketing Updates",
      "member_permission": {
 		"add_participant": true,
		"archive_channel": false,
		"audio_conference": true,
		"clear_all_messages": false,
		"delete_channel": false,
		"delete_my_msg": true,
		"delete_others_message": false,
		"edit_channel_info": false,
		"edit_my_msg": true,
		"leave_channel": true,
		"mention_users": true,
		"post_reply": true,
		"prime_time": false,
		"remove_participant": false,
		"send_message": true,
		"special_mentions": false,
		"sticky_message": false,
		"unarchive_channel": false,
		"video_conference": true
      },
      "creation_time": "2017-04-11T02:10:51-07:00",
      "participant_count": 51,
      "current_user_role": "member",
      "teams": {},
      "name": "#Marketing"
    }
	...
	...
	...
  ],
  "has_more": true,
  "next_token": "2fd152c0c1b5ee5b2a1d5fd1d3b233421cd1b8f67b2038cac5c27264b7ee1c616221ab489ea0bc2d7c43fa7a14f9c851cb11f4693804e0b43019786cc6580824",
  "sync_token": "2fd152c0c1b5ee5b2a1d5fd1d3b233422031afe47d55506a59fb92d55ea3a5ca9298862a157ff52c12ce6fb8be2c59b88d86d22368d8b17a1c484589b6c50225"
}

• REMINDER_ID is not displayed in the Zoho Cliq UI.

• Use the List Reminders API (GET /api/v2/reminders) and look for the id field per reminder. Use the category filter to narrow results: mine, others, mine-completed, or others-completed.

{
    "category": "mine",
    "list": [
        {
            "creation_time": 1506398400000,
            "creator": {
                "name": "Ryan West",
                "id": "2343536"
            },
            "completed": false,
            "content": "Annual sales review report due tomorrow",
            "time": 1506571200000,
            "users": [
                {
                    "deleted": false,
                    "name": "Scott Fisher",
                    "completed": false,
                    "id": "1234567"
                }
            ],
            "id": "11360000000204033",
            "message": {
                "sender_id": "2343536",
                "message_id": 1536853438313,
                "chat_id": "CT_1277744254305568677_53600857"
            }
        }
    ]
}

• EVENT_ID is not displayed in the Zoho Cliq UI.

• Use the Get Events API (GET /api/v2/events) and look for the id field. Use the from and to date filters to narrow results to a time range.

{
    "data": [
        {
            "location": "Conference Room 21",
            "entity_id": "47f78d99-049f-4e313-08ef-6b588976b4c4",
            "is_big_chat_event": false,
            "type": "video_conference",
            "isallday": false,
            "creator": {
                "name": "Scott Fisher",
                "email": "scott.fisher@zylker.com",
                "id": "9087651"
            },
            "entity_type": 8,
            "end_time": 1738942200000,
            "attendees": [
                {
                    "status": "accepted",
                    "name": "Ryan West",
                    "email": "ryan.west@zylker.com",
                    "id": "89472161"
                }
            ],
            "edit_tag": "1738835150914",
            "start_time": 1738938600000,
            "id": "427812df9891223aca537f0e8e7ad2a7c@zoho.com",
            "meeting_link": "https://cliq.zoho.com/meeting/1BK4IK987W6W",
            "timezone": "Asia/Kolkata",
            "description": "Join the Zylker Marketing Forum to discuss trends.",
            "calendar_id": "NDg4MTc3NTAwMDAwMDAwOTAwM3wzMzMyY2NjMQ==",
            "organizer": {
                "name": "Scott Fisher",
                "email": "scott.fisher@zylker.com",
                "id": "9087651"
            },
            "title": "Zylker Marketing Forum",
            "role": "organizer"
        }
    ]
}

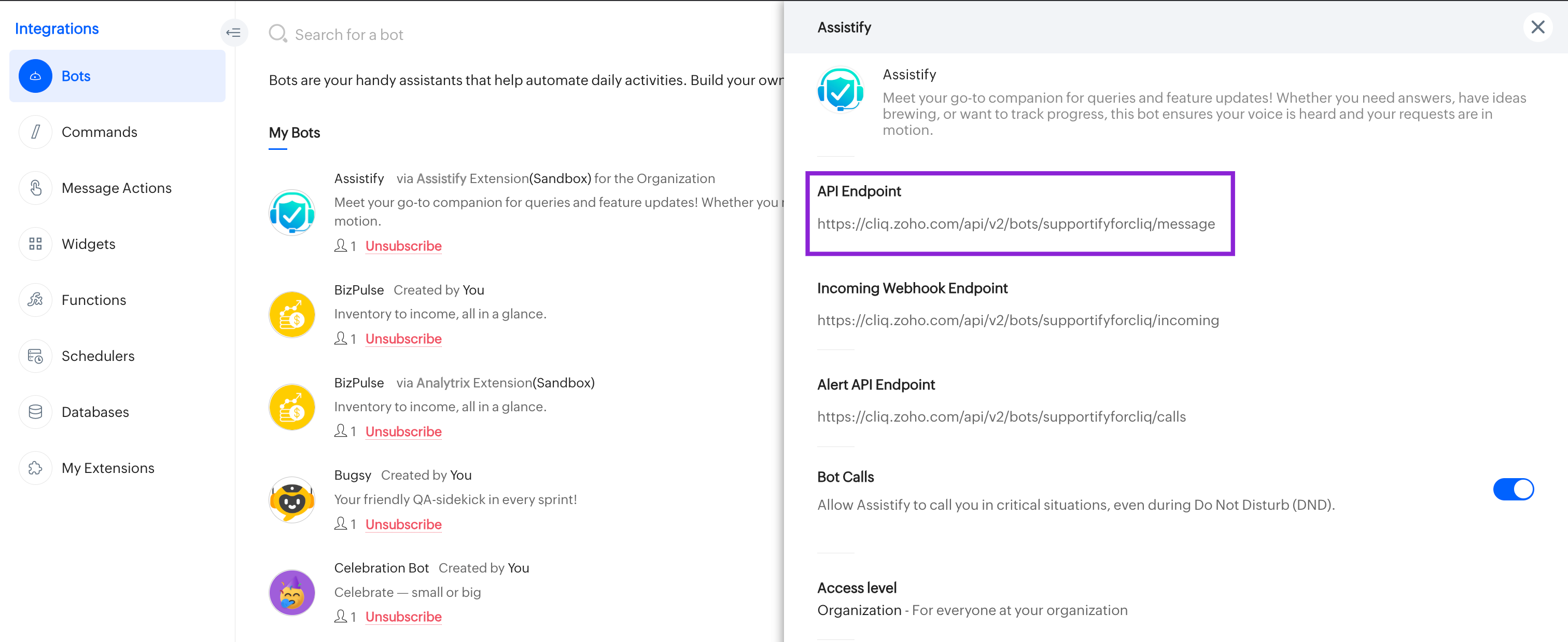

• Click the top right corner of your profile in Cliq and navigate to Bots & Tools, and under the bots section, select your preferred bot.
• Copy the API endpoint URL. The bot's unique name is located between "bots/" and the next slash "/".
• For example, if the API endpoint URL is https://cliq.zoho.com/company/2345678/api/v2/bots/crmupdatesincliq/message, the bot's unique name is crmupdatesincliq.

• Use the List Bots API (GET /api/v3/bots) and look for the unique_name field in the response.

{
  "url": "/api/v3/bots",
  "next_token": "NTB8MTc1NjM2MjA5MzQ5OHw1MzcxOTAwMDAwMTYyMDAwMw==",
  "type": "bot",
  "sync_token": "NTB8MTc3NzM0MjEyNzQ3OHw1MzcxOTAwMDAwMTg3ODAxMQ==",
  "data": [
    {
      "unique_name": "supportbot",
      "name": "Support Bot",
      "id": "53719000001878011",
      "channel_participation": [
        "listen_message",
        "send_message",
        "auto_follow_thread"
      ],
      "handlers": [
        {
          "type": "call_handler"
        },
        {
          "type": "welcome_handler"
        },
        {
          "type": "context_handler"
        },
        {
          "type": "message_handler"
        },
        {
          "position": 1,
          "sub_actions": [
            {
              "name": "Sub Action",
              "icon": "wand/627282"
            }
          ],
          "name": "Action",
          "icon": "wand/627282",
          "type": "menu_handler",
          "id": "53719000001878017"
        }
      ],
      "creator": {
        "name": "James",
        "id": "65113112"
      },
      "execution_type": "deluge",
      "status": "enabled",
      "type": "custom",
      "default": false,
      "subscriber_count": 1,
      "description": "Handles support workflows",
      "scope": "organization",
      "calls": "disabled"
    }
  ]
}

• Navigate to the bot's profile in the Cliq app. The BOT_ID is in the browser URL. For example, in https://cliq.zoho.com/app/bots/b-1901318000009075007, the BOT_ID is b-1901318000009075007.

• Use the List Bots API (GET /api/v3/bots) and look for the id field in the response.

{
  "url": "/api/v3/bots",
  "next_token": "NTB8MTc1NjM2MjA5MzQ5OHw1MzcxOTAwMDAwMTYyMDAwMw==",
  "type": "bot",
  "sync_token": "NTB8MTc3NzM0MjEyNzQ3OHw1MzcxOTAwMDAwMTg3ODAxMQ==",
  "data": [
    {
      "unique_name": "supportbot",
      "name": "Support Bot",
      "id": "53719000001878011",
      "channel_participation": [
        "listen_message",
        "send_message",
        "auto_follow_thread"
      ],
      "handlers": [
        {
          "type": "call_handler"
        },
        {
          "type": "welcome_handler"
        },
        {
          "type": "context_handler"
        },
        {
          "type": "message_handler"
        },
        {
          "position": 1,
          "sub_actions": [
            {
              "name": "Sub Action",
              "icon": "wand/627282"
            }
          ],
          "name": "Action",
          "icon": "wand/627282",
          "type": "menu_handler",
          "id": "53719000001878017"
        }
      ],
      "creator": {
        "name": "James",
        "id": "65113112"
      },
      "execution_type": "deluge",
      "status": "enabled",
      "type": "custom",
      "default": false,
      "subscriber_count": 1,
      "description": "Handles support workflows",
      "scope": "organization",
      "calls": "disabled"
    }
  ]
}

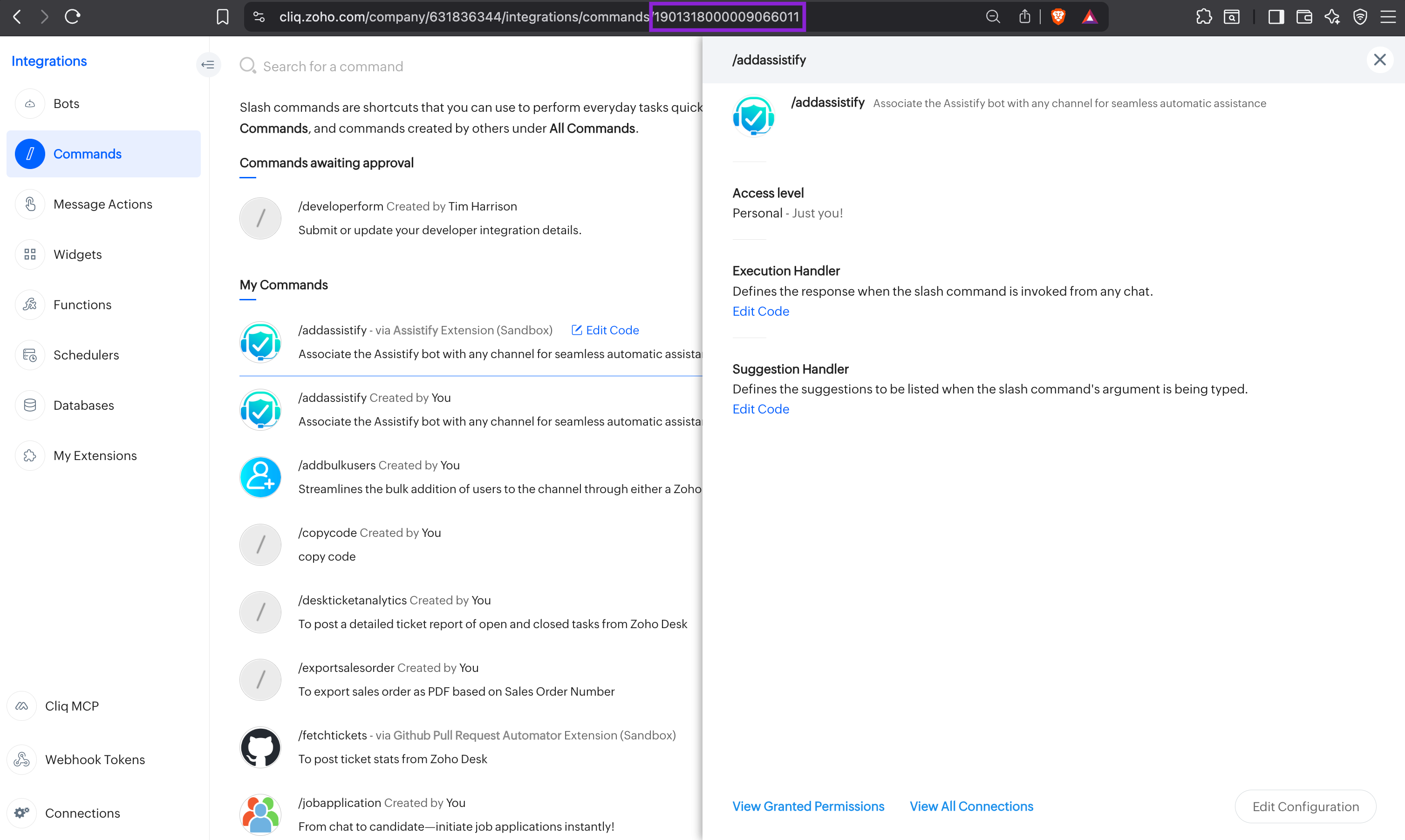

• In the Cliq app, go to Profile → Bots & Tools → Slash Commands → select the command. The SLASH_COMMAND_ID appears in the browser URL or the command settings page.

• Use the List all commands API (GET /api/v3/commands) and look for the id field in each command object in the response.

{
    "url": "/api/v3/commands",
    "type": "command",
    "sync_token": "MTB8MTc3NzM2MDM5OTQ5Mnw=",
    "data": [
        {
            "name": "report",
            "id": "227828000000128011",
            "handlers": [
                {
                    "type": "execution_handler"
                }
            ],
            "creator": {
                "name": "Ryan West",
                "id": "119440882"
            },
            "execution_type": "deluge",
            "hint": "Generate a sales or activity report",
            "status": "enabled",
            "type": "custom",
            "description": "Generates a report for the specified date range and team",
            "scope": "organization",
            "options": {
                "type": "Report type (e.g. sales, activity, attendance)",
                "period": "Date range (e.g. today, this_week, last_month)"
            }
        },
        {
            "name": "ticket",
            "id": "227828000000128009",
            "handlers": [
                {
                    "type": "execution_handler"
                },
                {
                    "type": "suggestion_handler"
                }
            ],
            "creator": {
                "name": "Ryan West",
                "id": "119440882"
            },
            "execution_type": "deluge",
            "hint": "Create or look up a support ticket",
            "status": "enabled",
            "max_suggestions": 5,
            "type": "custom",
            "description": "Creates a new support ticket or retrieves an existing one by ID",
            "scope": "team",
            "options": {
                "action": "Action to perform (create or lookup)",
                "priority": "Ticket priority (low, medium, high, critical)"
            }
        }
    ]
}

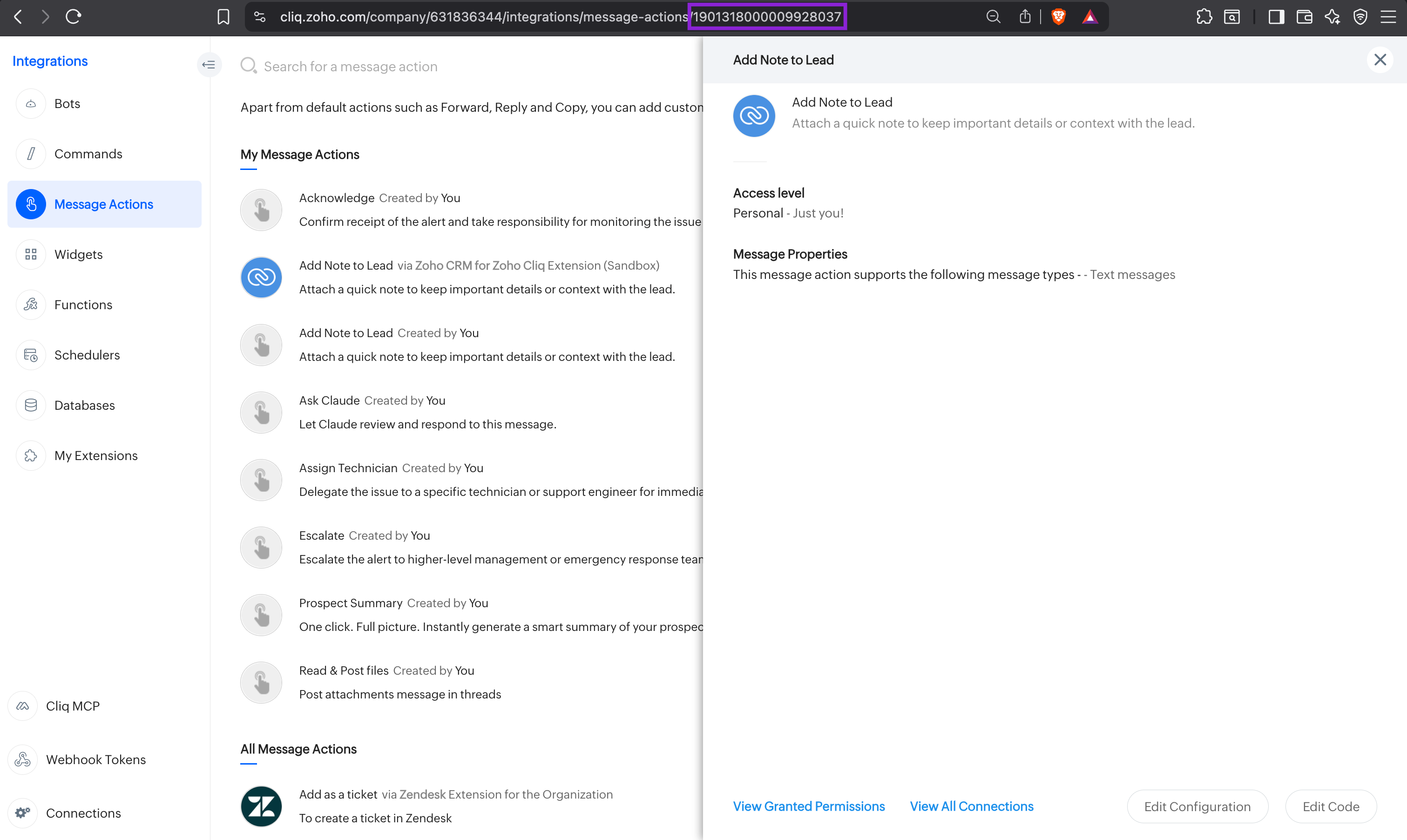

• In the Cliq app, go to Profile → Bots & Tools → Message Actions → select the action. The MESSAGE_ACTION_ID appears in the browser URL or the action settings page.

• Use the List all message actions API (GET /api/v3/messageactions) and look for the id field in each message action object in the response.

{
    "url": "/api/v3/messageactions",
    "type": "messageaction",
    "sync_token": "NTB8MTc3NzQzMjI3NjY1OHw1MzcxOTAwMDAwMjEyNDAxMA==",
    "data": [
        {
            "multi_selectable": true,
            "name": "Create Ticket",
            "id": "53719000002124010",
            "handlers": [
                {
                    "type": "execution_handler"
                }
            ],
            "creator": {
                "name": "James",
                "id": "65113112"
            },
            "execution_type": "deluge",
            "hint": "Create a helpdesk ticket",
            "status": "enabled",
            "type": "custom",
            "message_types": [
                "text",
                "link"
            ],
            "scope": "organization"
        },
        {
            "multi_selectable": false,
            "name": "Translate",
            "id": "53719000002124013",
            "handlers": [
                {
                    "type": "execution_handler"
                }
            ],
            "creator": {
                "name": "James",
                "id": "65113112"
            },
            "execution_type": "deluge",
            "hint": "Translate selected message to English",
            "status": "enabled",
            "type": "custom",
            "message_types": [
                "text"
            ],
            "scope": "private"
        }
    ]
}

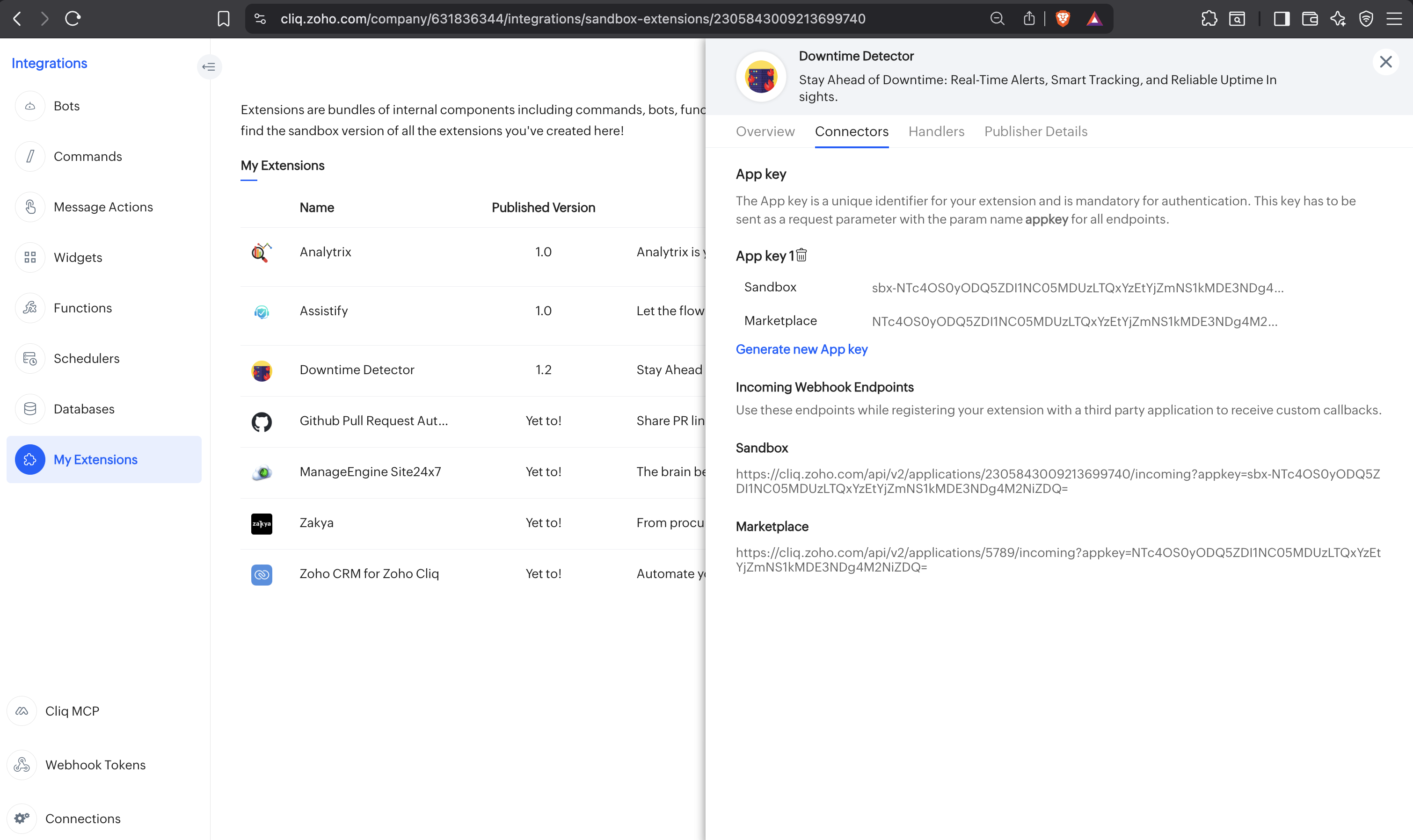

• Head to your profile and navigate to Bots and Tools → My Extensions.
• Select the preferred extension - a popup will open displaying the extension information.
• Switch to the Connectors tab.
• Both Sandbox and Marketplace URLs will be present - the numeric value after /applications/ in the URL is your Extension ID.

Example: https://cliq.zoho.com/api/v2/applications/2305843009213700356/incoming?appkey=...
Here, 2305843009213700356 is the Extension ID.

• EXTENSION_ID is not retrievable via API.

• Head to your profile and navigate to Bots and Tools → My Extensions.
• Select the preferred extension - a popup will open displaying the extension information.
• Switch to the Connectors tab.
• Both Sandbox and Marketplace URLs will be present - the appkey parameter value in the URL is your Extension Key.
• Sandbox key - use this for internal development, debugging, and testing.
• Marketplace key - use this for the published, installed extension.

• EXTENSION_KEY is not retrievable via API.

• Use the Get Extension Properties API (GET /api/v3/extensions/{EXTENSION_ID}/properties?keys=api_key,region) to retrieve one or more property values by their key names.

// Example: GET /api/v3/extensions/53719000001887001/properties?keys=api_key,region
{
    "api_key": "my_secret_api_key_value",
    "region": "us-east"
}

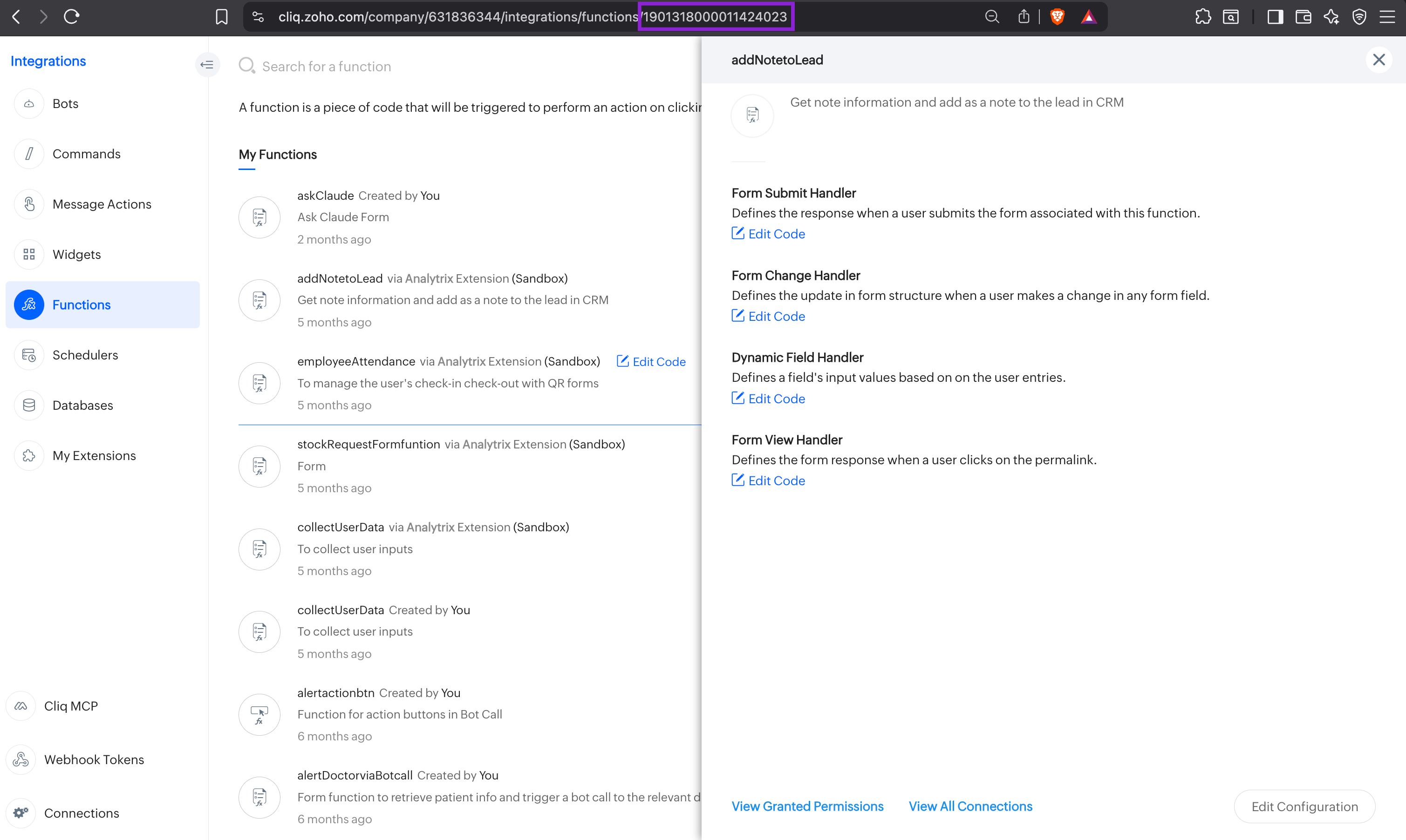

• In the Cliq app, go to Profile → Bots & Tools → Functions → select the function. The FUNCTION_ID appears in the browser URL or the function settings page.

• Use the List all functions API (GET /api/v3/functions) and look for the id field in each function object in the response.

{
    "url": "/api/v3/functions",
    "next_token": "NTB8LTF8NTM3MTkwMDAwMDAyNDUwMTE=",
    "type": "function",
    "sync_token": "NTB8MTc3NzQzMjg2NjI1MXw1MzcxOTAwMDAwMjEyNDAxMQ==",
    "data": [
        {
            "name": "createTask",
            "id": "53719000002124011",
            "function_type": "button",
            "handlers": [
                {
                    "type": "button_handler"
                }
            ],
            "creator": {
                "name": "James",
                "id": "65113112"
            },
            "execution_type": "deluge",
            "status": "enabled",
            "type": "custom",
            "description": "Creates a task in integrated system",
            "scope": "personal"
        },
        {
            "name": "SubmitFeedback",
            "id": "53719000002124012",
            "function_type": "form",
            "handlers": [
                {
                    "type": "form_submit_handler"
                }
            ],
            "creator": {
                "name": "James",
                "id": "65113112"
            },
            "execution_type": "deluge",
            "status": "enabled",
            "type": "custom",
            "description": "Processes feedback form submissions from users",
            "scope": "personal"
        }
    ]
}

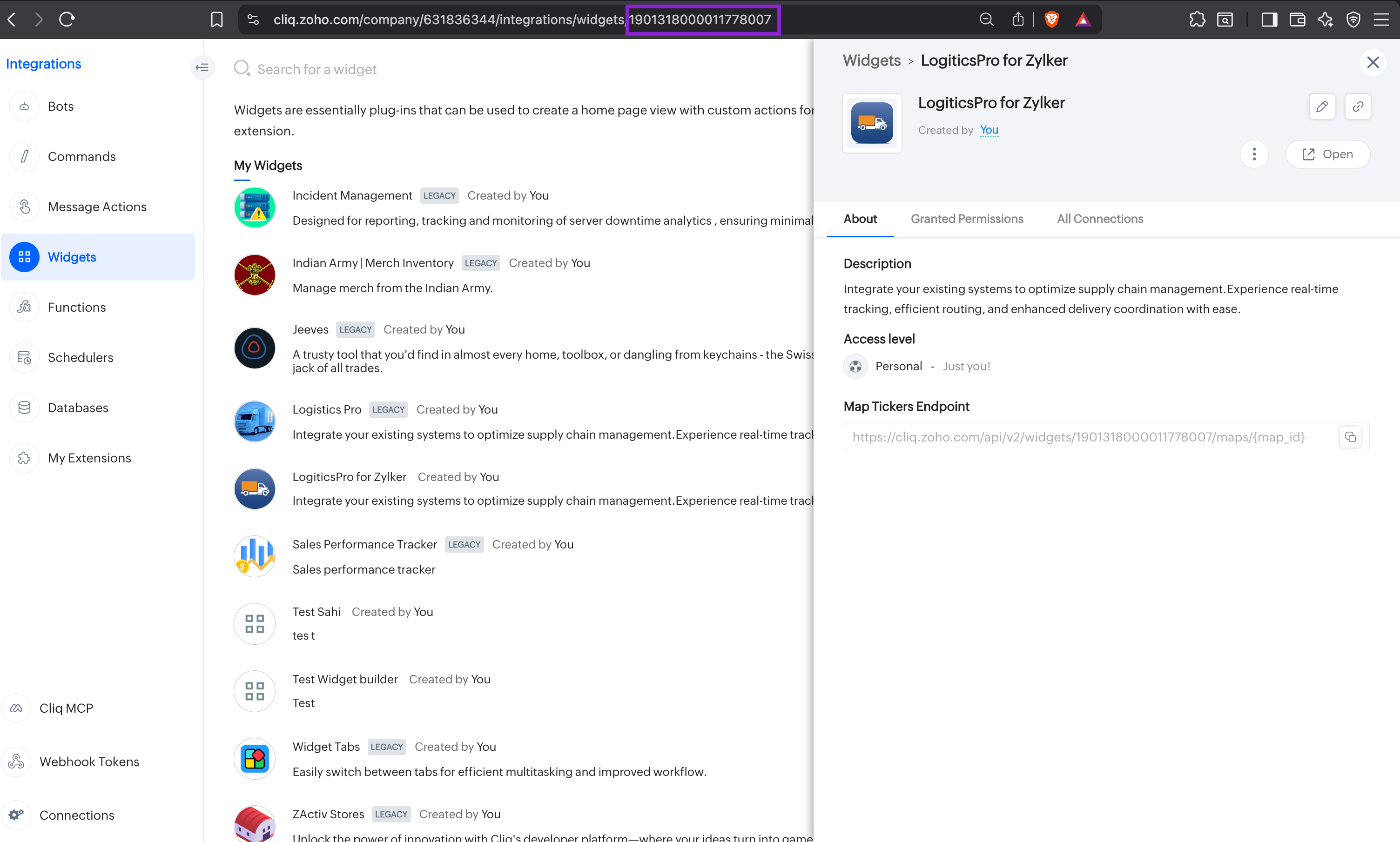

• In the Cliq app, go to Profile → Bots & Tools → Widgets. Select the widget. The WIDGET_ID appears in the browser URL or on the widget settings page.

• Use the List Widgets API (GET /api/v3/widgets) and look for the id field per widget.

{
  "url": "/api/v3/widgets",
  "type": "widget",
  "data": [
    {
      "id": "1901318000016789001",
      "name": "Sales Dashboard",
      "status": "enabled"
    }
  ]
}

• Open the widget in the Cliq developer console and view its Deluge or Zoho Catalyst code.
• Look for the return statement that contains a map object.
• The id field inside that map object is your MAP_ID.

currentDate = zoho.currenttime.toString();
UnixTime = currentDate.unixEpoch(user.get("timezone"));
return {
   "type":"applet",
   "data_type":"map",
   "map":{
      "id":"texas_fleet_map",
      "title":"Texas Fleet",
      "tickers":{
         "dallas_van":{
            "title":"TX-VAN-1001",
            "type":"van",
            "last_modified_time":UnixTime,
            "latitude":32.7767,
            "longitude":-96.7970,
            "info":"Out for delivery",
            "color":"green"
         },
         "houston_van":{
            "title":"TX-VAN-1002",
            "type":"van",
            "last_modified_time":UnixTime,
            "latitude":29.7604,
            "longitude":-95.3698,
            "info":"At pickup point",
            "color":"yellow"
         },
         "austin_van":{
            "title":"TX-VAN-1003",
            "type":"van",
            "last_modified_time":UnixTime,
            "latitude":30.2672,
            "longitude":-97.7431,
            "info":"Route 40 percent done",
            "color":"green"
         },
         "sanantonio_van":{
            "title":"TX-VAN-1004",
            "type":"van",
            "last_modified_time":UnixTime,
            "latitude":29.4241,
            "longitude":-98.4936,
            "info":"Traffic delay",
            "color":"red"
         },
         "controlhub":{
            "title":"Dallas Hub",
            "type":"office",
            "last_modified_time":UnixTime,
            "latitude":32.8975,
            "longitude":-97.0404,
            "info":"Fleet command center",
            "color":"green"
         }
      }
   }
};

Here, texas_fleet_map is the MAP_ID. This value is developer-defined and must match exactly when calling the ticker endpoints - any mismatch will result in the target map component not being found.

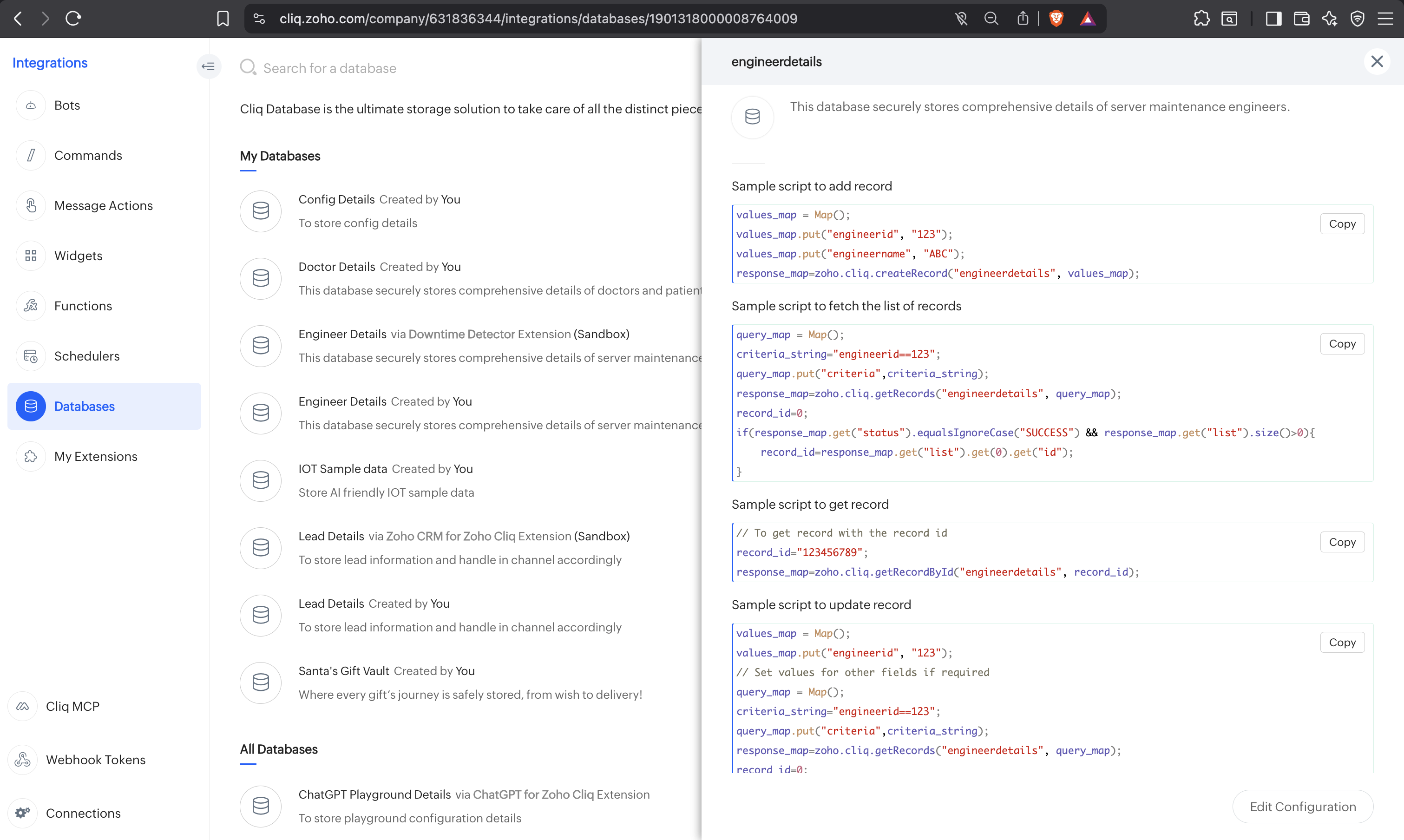

• In the Cliq app, go to Profile → Bots & Tools → Databases.
• Select a datastore - the DATASTORE_ID is the numeric value after /databases/ in the browser URL.

Example: https://cliq.zoho.com/company/7271293/integrations/databases/138201392392384009
Here, 138201392392384009 is the Datastore ID.

• Use the List Datastores API (GET /api/v3/datastores) and look for the id field per datastore object.

{
    "url": "/api/v3/datastores",
    "type": "datastore",
    "data": {
        "unique_name": "empdir",
        "name": "Employee Directory",
        "id": "227828000000132001",
        "status": "enabled",
        "type": "custom",
        "description": "V3 API test datastore",
        "scope": "personal"
    }
}

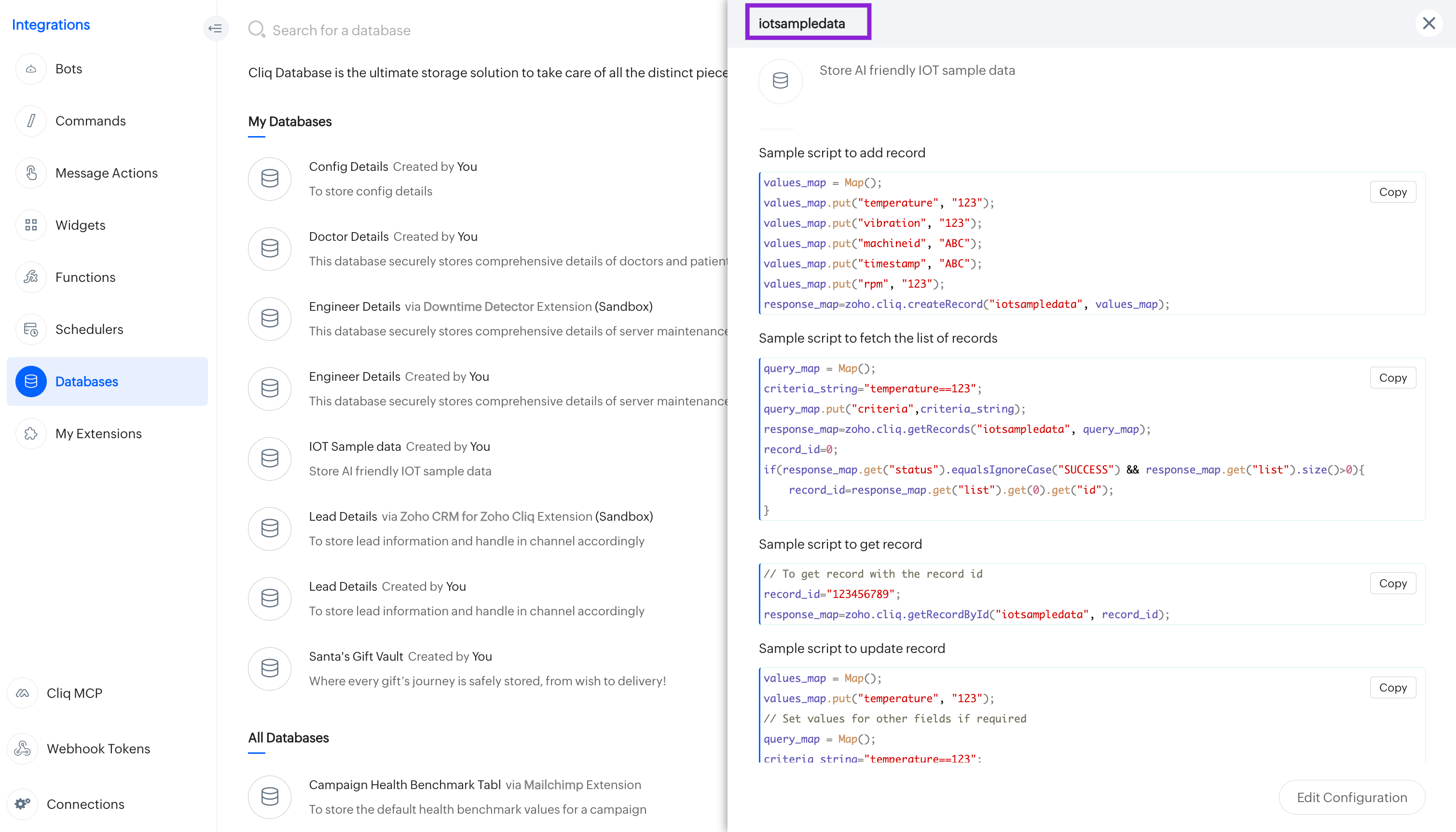

• To access your preferred database in Cliq, click on the top right corner of your profile and navigate to "Bots & Tools." Under the "Databases" section, select your desired database.
• A popup window will appear, displaying sample scripts for adding, updating, or removing records in the database or datastore. The unique name of the database will be shown at the top of this window.

• Use the List Datastores API (GET /api/v3/datastores) and look for the unique_name field.

{
    "url": "/api/v3/datastores",
    "type": "datastore",
    "data": {
        "unique_name": "empdir",
        "name": "Employee Directory",
        "id": "227828000000132001",
        "creator": {
            "name": "NP NTC",
            "id": "119440882"
        },
        "status": "enabled",
        "fields": [
            {
                "default_value": "",
                "masked": false,
                "name": "Notes",
                "unique_name": "notes",
                "type": "large-text",
                "mandatory": false,
                "id": "17202020414617773604009000"
            },
            {
                "default_value": "0",
                "masked": false,
                "name": "Employee ID",
                "unique_name": "empid",
                "type": "number",
                "mandatory": true,
                "id": "17202020414617773604009001"
            },
            {
                "default_value": "",
                "masked": false,
                "name": "Employee Name",
                "unique_name": "empname",
                "type": "limited-text",
                "mandatory": true,
                "id": "17202020414617773604009002"
            },
            {
                "default_value": "true",
                "masked": false,
                "name": "Active Status",
                "unique_name": "isactive",
                "type": "boolean",
                "mandatory": false,
                "id": "17202020414617773604009003"
            }
        ],
        "type": "custom",
        "description": "V3 API test datastore",
        "unique_keys": [
            [
                "empid"
            ]
        ],
        "scope": "personal"
    }
}

• RECORD_ID is not visible in the Zoho Cliq UI.

• V2: Use the List Records API (GET /api/v2/storages/{DATABASE_UNIQUE_NAME}/records) and look for the id field per record.
• V3: Use the List Records API (GET /api/v3/datastores/{datastore_unique_name}/records) and look for the id field per record.

{
  "data": [
    {
      "id": "1901318000011234001",
      "ticket_number": "TKT-0042",
      "status": "open",
      "priority": "high"
    }
  ]
}

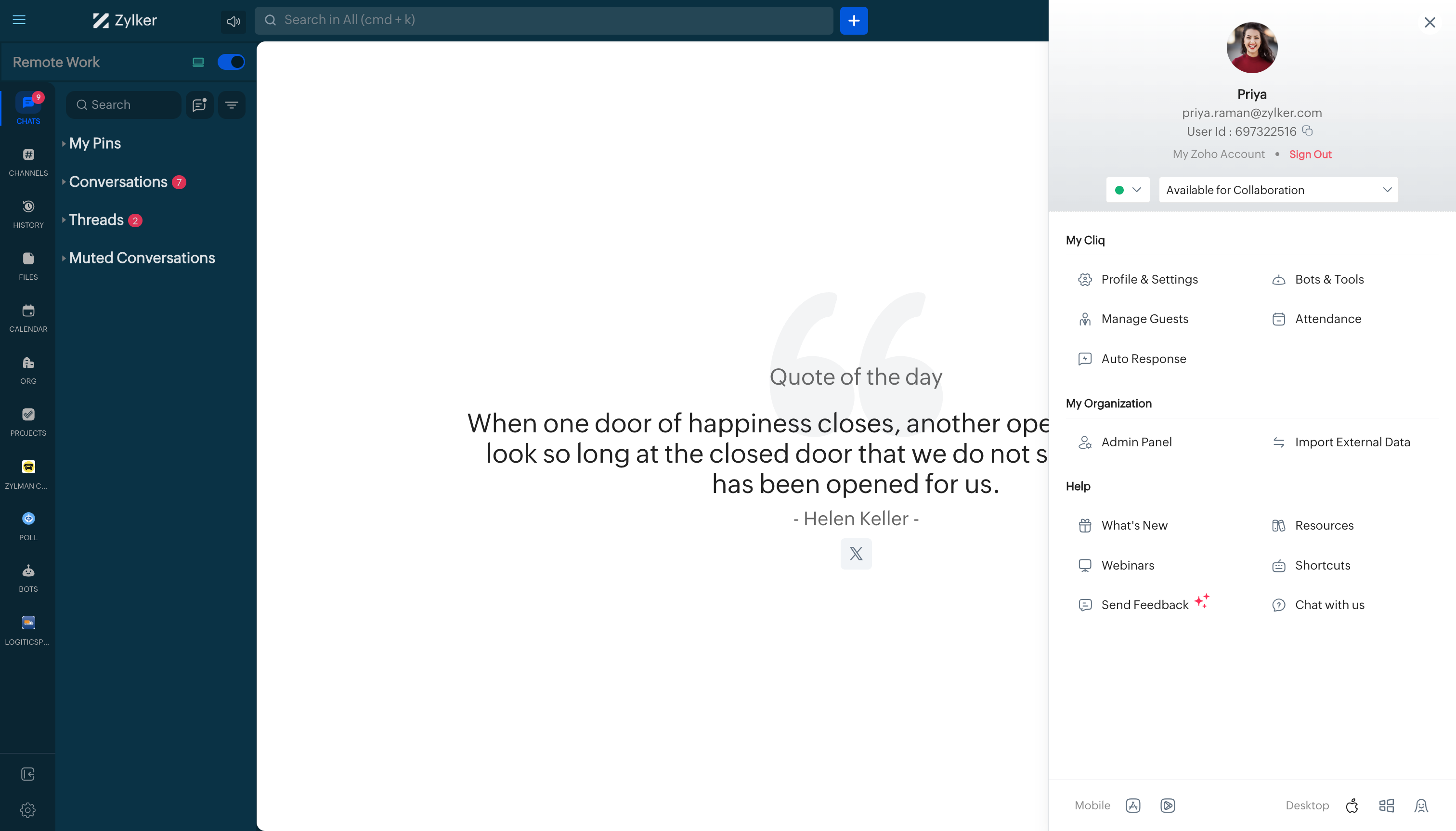

• In the Cliq app, click on a user's profile. The USER_ID is shown in the profile card.

• Use the List Users API (GET /api/v2/users) and look for the id field per user.
• Or use GET /api/v2/users/{email} to retrieve a specific user by their email address and get their id.

{
    "next_token": "359868eb5dca56ghs721hak082ynoy85hakqovfewjbf41533",
    "has_more": true,
    "data": [
        {
            "email_id": "yoda@zylker.com",
            "zuid": "163315760",
            "zoid": "54107592",
            "display_name": "Yod",
            "name": "Yod Agbaria",
            "organization_id": "631836344",
            "id": "163315760"
        },
        {
            "email_id": "noweit@zylker.com",
            "zuid": "163317679",
            "zoid": "54107592",
            "display_name": "No-Wei",
            "name": "No-Wei Ting",
            "organization_id": "631836344",
            "id": "163317679"
        },
        {...},
        {...}
    ]
}

• In the Cliq app, click on a user's profile. Their email address is shown in the profile card.

• Use the List Users API (GET /api/v2/users) and look for the email_id field per user.

{
    "next_token": "359868eb5dca56ghs721hak082ynoy85hakqovfewjbf41533",
    "has_more": true,
    "data": [
        {
            "email_id": "yoda@zylker.com",
            "zuid": "163315760",
            "zoid": "54107592",
            "display_name": "Yod",
            "name": "Yod Agbaria",
            "organization_id": "631836344",
            "id": "163315760"
        },
        {
            "email_id": "noweit@zylker.com",
            "zuid": "163317679",
            "zoid": "54107592",
            "display_name": "No-Wei",
            "name": "No-Wei Ting",
            "organization_id": "631836344",
            "id": "163317679"
        },
        {...},
        {...}
    ]
}

• STATUS_ID is not shown in the Zoho Cliq UI.

• Use the List Statuses API (GET /api/v2/statuses) and look for the id field per custom status.

{
    "data": [
        {
            "message": "Arise awake and stop not till the goal is reached",
            "id": 1775998000028408800
        },
        {
            "message": "Coffee break",
            "id": 1775998000030383900
        },
        {
            "message": "Opportunities don't happen. You create them.",
            "id": 1775998000034330400
        },
        {
            "message": "All progress takes place outside the comfort zone",
            "id": 1775998000034476000
        }
    ]
}

• USER_FIELD_ID is not displayed in the Zoho Cliq UI.

• Use the List User Fields API (GET /api/v2/userfields) and look for the id field per user field.

{
    "data": [
        {
            "id": "1901318000000086005",
            "name": "description",
            "field_type": "text",
            "is_mandatory": false
        },
        {
            "id": "1901318000000086007",
            "name": "Extension",
            "field_type": "text",
            "is_mandatory": false
        },
        {
            "id": "1901318000000086009",
            "name": "Date of Joining",
            "field_type": "date",
            "is_mandatory": false
        }
    ]
}

• DEPARTMENT_ID is not displayed in the Zoho Cliq UI.

• Use the List Departments API (GET /api/v2/departments) and look for the id field. Use the search query parameter to filter by name.

{
    "data": [
        {
            "name": "Zylker Widgets Inc",
            "is_default": true,
            "id": "1901318000001071001",
            "members_count": "7",
            "lead": {
                "name": "Scott Fisher",
                "id": "631830849",
                "country": "us",
                "email_id": "scott.fisher@zylker.com",
                "zoid": "54107592",
                "timezone": "Asia/Kolkata",
                "first_name": "Scott",
                "full_name": "Scott Fisher",
                "zuid": "631830849",
                "display_name": "Scott Fisher",
                "last_name": "Fisher"
            },
            "parent_department_id": "1901318000001424001",
            "lead_zuid": "631830849"
        }
    ],
    "next_token": "2a4e39fab27032f106ced7277c5b336d"
}

• DESIGNATION_ID is not displayed in the Zoho Cliq UI.

• Use the List Designations API (GET /api/v2/designations) and look for the id field.

{
    "data": [
        {
            "name": "Leadership Staff",
            "id": "1901318000001072003"
        },
        {
            "name": "Web Developer",
            "id": "1901318000001072007"
        },
        {
            "name": "Content Writer",
            "id": "1901318000001072013"
        },
        {
            "name": "UX Designer",
            "id": "1901318000001072019"
        },
        {
            "name": "iOS Developer",
            "id": "1901318000001072025"
        }
    ]
}

• TEAM_ID is not displayed in the Zoho Cliq UI.

• Use the List Teams API (GET /api/v2/teams) and look for the team_id field per team. Add ?joined=true to list only the authenticated user's teams.

{
    "teams": [
        {
            "name": "Zylker Support",
            "creation_time": "2016-12-13T16:50:44+05:30",
            "organization_id": "53787097",
            "is_active": true,
            "is_moderator": false,
            "description": "Exclusive team with Zylker Support Professionals",
            "team_id": 53797404,
            "joined": true,
            "participant_count": 3
        }
    ]
}

• ROLE_ID is not displayed in the Zoho Cliq UI.

• Use the List Roles API (GET /api/v2/profiles) and look for the id field per role.

{
    "data": [
        {
            "is_custom_admin": false,
            "name": "Admin",
            "creation_time": "2020-08-10T12:27:35+05:30",
            "last_modified_time": "2020-08-10T12:27:35+05:30",
            "organization_id": "62914174",
            "is_default": true,
            "profile_type": "Admin",
            "id": "42405000000004047"
        },
        {
            "is_custom_admin": false,
            "name": "Members",
            "creation_time": "2020-08-10T12:27:35+05:30",
            "last_modified_time": "2020-08-10T12:27:35+05:30",
            "organization_id": "62914174",
            "is_default": true,
            "profile_type": "Members",
            "id": "42405000000004049"
        },
        {
            "is_custom_admin": false,
            "name": "Test Member",
            "creation_time": "2022-02-17T15:37:39+05:30",
            "last_modified_time": "2022-02-17T15:37:39+05:30",
            "organization_id": "62914174",
            "is_default": false,
            "profile_type": "Members",
            "id": "42405000000189003",
            "description": "123"
        }
    ]
}
